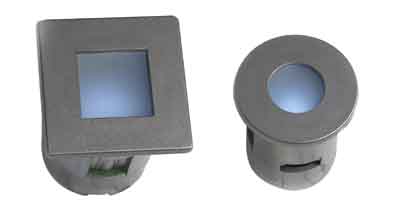

2378 - ROUND EYE
2379 - SQUARE EYE
Technical Description
Available in white and blue Led with a corrosion resistant body, provides an easy alternative for uplighting where small beams are required ie. on stairs. what makes it unique from it predecessor is that it is suitable for coastal applications.
Putting the eye in place is very simple: the spotlight has to be fit into a seat of 35mm in diametre and then secured by means of screw anchors or simply by glue (the eye weighs only a few grams).
The expected life of the LED exceeds 100 000 operating hours in average and the product is maintainance free. The power consumption of the of every eye is 0.1 watt only; power supplied with 4 Volt alternating current. Our 4.2V - 20 VA power transformer, Part no. 50 EM, can supply for 1-100 EYES, connected parallel to each other. In case of installation with cable longer than 50 meters, some additional transformers should be used. For a correct installation, please refer to the following diagram.
Colours
3191 White body / White LED
3192 White body / Blue LED
5091 Silver body / White LED
3192 Silver body / Blue LED
Light Sources
Light Source
Type: LED
Watts: 0.1W
Volts: 4.2V - 20VA
Base: N/A
Technical Characteristics
Protection: IP 20
Insulation: Class III
Resistance: Flammable
